Auto name Common wheels parameters |
Factory (Wheels) |
Options (Wheels) |
Tuning (Wheels) |
Factory (tires) |
Options (tires) |
Tuning (tires) |

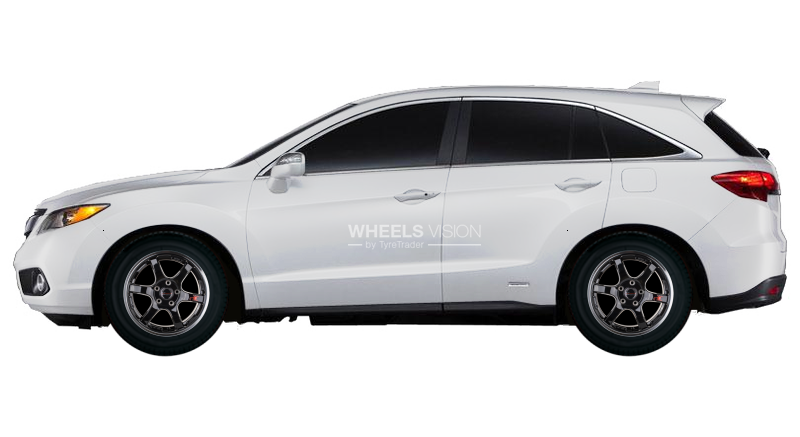

Acura RDX II () 3.0i TB3\4 263 лс
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 64.1
Mounting bolt 12x1,5
|
7,5x18 ET45 |
7,5x19 ET45 8x19 ET50 8x20 ET50 |
235/60 R18 |
235/55 R19 255/50 R19 255/45 R20 |
||
Acura RDX II () 2.3i Turbo TB1\2 240 лс
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 64.1
Mounting bolt 12x1,5
|
7,5x18 ET45 |
8x19 ET50 8x20 ET50 |
235/55 R18 |
245/45 R20 235/50 R19 |
For an example of size: 7,5x18 ET45 PCD 5*114,3 Dia 64.1 , consider the notation for these parameters.
- width - 7,5 or 7,5J means the width of the disk shelves in inches
- diameter - 18 or R18 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*114,3 means 5 holes with a distance of 114,3.
- Et (ET) -45 or ET45 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -64.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,5 diameter and thread pitch of the bolt / nut in millimeters
Using the wheel size example 235/60 R18 , consider what these options mean.
- Width -235 - tire width in millimeters
- Height -60 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be235 *60 & # 37; = mm
- Diameter -18 or R18 - tire setting diameter
