Auto name Common wheels parameters |
Factory (Wheels) |
Options (Wheels) |
Tuning (Wheels) |
Factory (tires) |
Options (tires) |
Tuning (tires) |
|

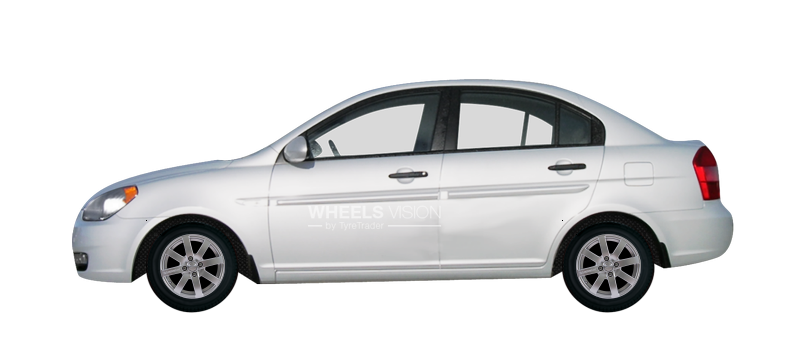

Hyundai Accent III Sedan (2005 - 2018) 1.4i
PCD (PCD) 4x100
Hub diameter (Dia,mm) 54.1
Mounting bolt 12x1,5
|
5x14 ET39 5,5x14 ET43 5,5x15 ET45 |
6x15 ET46 6x15 ET48 5,5x16 ET45 6x16 ET49 6x16 ET52 |
175/70 R14 185/65 R15 |
185/65 R15 185/60 R16 195/55 R16 |
||
|
Hyundai Accent III Sedan (2002 - 2018) 1.6i
PCD (PCD) 4x100
Hub diameter (Dia,mm) 54.1
Mounting bolt 12x1,5
|
5,5x14 ET43 5,5x15 ET45 6x15 ET46 |
6x15 ET48 5,5x16 ET45 6x16 ET49 6x16 ET52 6,5x17 ET45 |
175/70 R14 185/65 R15 |
185/65 R15 185/60 R16 195/55 R16 205/45 R17 |
||
|
Hyundai Accent III Sedan (2000 - 2010) 1.5 CRDi
PCD (PCD) 4x100
Hub diameter (Dia,mm) 54.1
Mounting bolt 12x1,5
|
5x14 ET39 |
5,5x14 ET46 5,5x15 ET46 6,5x16 ET47 |
175/70 R14 |
205/45 R16 185/65 R14 195/55 R15 |
For an example of size: 5x14 ET39 PCD 4*100 Dia 54.1 , consider the notation for these parameters.
- width - 5 or 5J means the width of the disk shelves in inches
- diameter - 14 or R14 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 4*100 means 4 holes with a distance of 100.
- Et (ET) -39 or ET39 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -54.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,5 diameter and thread pitch of the bolt / nut in millimeters
Using the wheel size example 175/70 R14 , consider what these options mean.
- Width -175 - tire width in millimeters
- Height -70 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be175 *70 & # 37; = mm
- Diameter -14 or R14 - tire setting diameter
