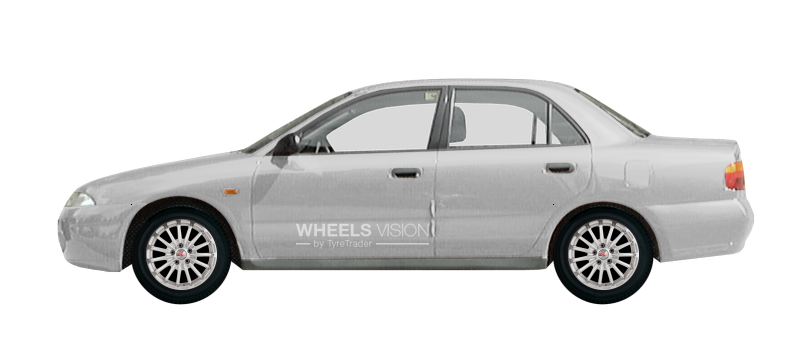

Factory wheels and tyres sizes Mitsubishi Carisma Sedan (1995 - 2003)

Auto name Common wheels parameters	Factory (Wheels)	Options (Wheels)	Tuning (Wheels)	Factory (tires)	Options (tires)	Tuning (tires)
Mitsubishi Carisma Sedan (2000 - 2004) 1.6i DA II 102 лс PCD (PCD) 4x114,3 Hub diameter (Dia,mm) 67.1 Mounting bolt 12x1,5	5,5x15 ET46 6x15 ET46	6x15 ET46 6,5x15 ET48 6,5x16 ET44		175/65 R15 195/60 R15	205/55 R15 205/50 R16 195/55 R15
Mitsubishi Carisma Sedan (2000 - 2004) 1.8 GDI DA II 121 лс PCD (PCD) 4x114,3 Hub diameter (Dia,mm) 67.1 Mounting bolt 12x1,5	6x15 ET46	6,5x15 ET48 6,5x16 ET48 7x17 ET44		195/55 R15 195/60 R15	205/50 R16 215/40 R17 205/55 R15
Mitsubishi Carisma Sedan (2000 - 2004) 1.9 DI-D DA II 101 лс PCD (PCD) 4x114,3 Hub diameter (Dia,mm) 67.1 Mounting bolt 12x1,5	5,5x15 ET46 6x15 ET46	6x15 ET46 6,5x15 ET48 6,5x16 ET44		175/65 R15 195/60 R15	205/55 R15 205/50 R16 195/55 R15
Mitsubishi Carisma Sedan (1997 - 1999) 1.6i DA I 98 лс PCD (PCD) 4x100 Hub diameter (Dia,mm) 56.1 Mounting bolt 12x1,5	5,5x14 ET46	5,5x14 ET46 5,5x15 ET46 6x15 ET44		175/70 R14	185/65 R14 185/60 R15 195/55 R15 175/65 R15
Mitsubishi Carisma Sedan (1997 - 1999) 1.8 GDI DA I 123 лс PCD (PCD) 4x114,3 Hub diameter (Dia,mm) 67.1 Mounting bolt 12x1,5	6x15 ET46	6,5x15 ET48 6,5x16 ET48 7x17 ET44		195/55 R15 195/60 R15	205/55 R15 205/50 R16 215/40 R17
Mitsubishi Carisma Sedan (1995 - 1999) 1.9 TD DA I 89 лс PCD (PCD) 4x100 Hub diameter (Dia,mm) 56.1 Mounting bolt 12x1,5	5,5x14 ET46	5,5x14 ET46 5,5x15 ET46 6x15 ET46		175/70 R14	175/65 R15 185/65 R14 185/60 R15 195/55 R15
Mitsubishi Carisma Sedan (1995 - 1997) 1.8 MSX DA I 138 лс PCD (PCD) 4x114,3 Hub diameter (Dia,mm) 67.1 Mounting bolt 12x1,5	6x15 ET46	6,5x15 ET48 6,5x16 ET48 7x17 ET44		195/55 R15 195/60 R15	205/50 R16 215/40 R17 205/55 R15
Mitsubishi Carisma Sedan (1995 - 1997) 1.8i DA I 123 лс PCD (PCD) 4x114,3 Hub diameter (Dia,mm) 67.1 Mounting bolt 12x1,5	5,5x15 ET46 6x15 ET46	6x15 ET46 6,5x15 ET48 6,5x16 ET44		175/65 R15 195/60 R15	205/50 R16 205/55 R15 195/55 R15
Mitsubishi Carisma Sedan (1995 - 1996) 1.6i DA I 89 лс PCD (PCD) 4x100 Hub diameter (Dia,mm) 56.1 Mounting bolt 12x1,5	5,5x14 ET46	5,5x15 ET46 6x15 ET46		175/70 R14 185/65 R14	185/60 R15 195/55 R15 175/65 R15

Wheels parameters:

For an example of size: 5,5x15 ET46 PCD 4*114,3 Dia 67.1 , consider the notation for these parameters. - width - 5,5 or 5,5J means the width of the disk shelves in inches
- diameter - 15 or R15 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 4*114,3 means 4 holes with a distance of 114,3.
- Et (ET) -46 or ET46 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -67.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,5 diameter and thread pitch of the bolt / nut in millimeters

Tyres sizes:

Using the wheel size example 175/65 R15 , consider what these options mean. - Width -175 - tire width in millimeters
- Height -65 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be175 *65 & # 37; = mm
- Diameter -15 or R15 - tire setting diameter
