Auto name Common wheels parameters |
Factory (Wheels) |
Options (Wheels) |
Tuning (Wheels) |
Factory (tires) |
Options (tires) |
Tuning (tires) |
|

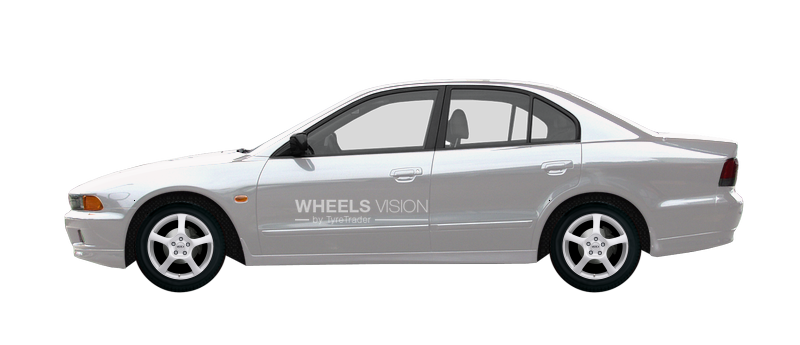

Mitsubishi Galant VIII Sedan (2004 - 2012) 2.4i PS platform 160 лс
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 67.1
Mounting bolt 12x1,5
|
6,5x16 ET46 |
6,5x17 ET46 7x18 ET46 8x18 ET46 |
215/60 R16 |
215/55 R17 215/50 R18 235/45 R18 |
||
|
Mitsubishi Galant VIII Sedan () 2.4i EA\EC 140 лс
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 67.1
Mounting bolt 12x1,5
|
6x15 ET46 6,5x16 ET46 |
195/65 R15 205/60 R15 205/55 R16 |
||||
|
Mitsubishi Galant VIII Sedan () 3.0i EA\EC 195 лс
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 67.1
Mounting bolt 12x1,5
|
6x16 ET46 6,5x17 ET48 7,5x17 ET42 |
205/55 R16 205/50 R17 225/45 R17 |
For an example of size: 6,5x16 ET46 PCD 5*114,3 Dia 67.1 , consider the notation for these parameters.
- width - 6,5 or 6,5J means the width of the disk shelves in inches
- diameter - 16 or R16 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*114,3 means 5 holes with a distance of 114,3.
- Et (ET) -46 or ET46 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -67.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,5 diameter and thread pitch of the bolt / nut in millimeters
Using the wheel size example 215/60 R16 , consider what these options mean.
- Width -215 - tire width in millimeters
- Height -60 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be215 *60 & # 37; = mm
- Diameter -16 or R16 - tire setting diameter
