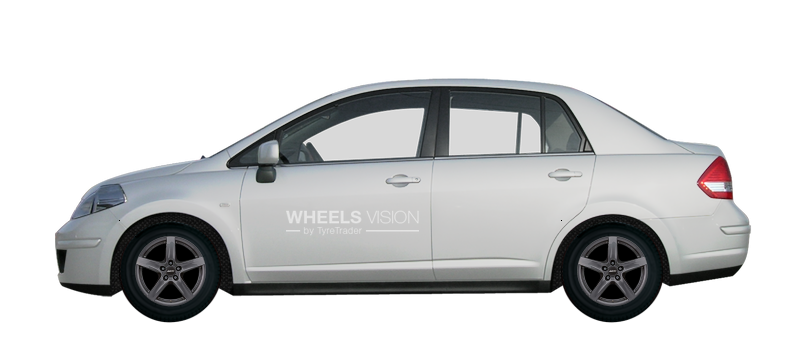

Factory wheels and tyres sizes Nissan Tiida I Sedan (2004 - 2013)

Auto name Common wheels parameters	Factory (Wheels)	Options (Wheels)	Tuning (Wheels)	Factory (tires)	Options (tires)	Tuning (tires)
Nissan Tiida I Sedan (2011 - 2016) 1.6 T C12 188 лс PCD (PCD) 5x114,3 Hub diameter (Dia,mm) 66.1 Mounting bolt 12x1,25	6,5x16 ET43 7,5x17 ET45			195/60 R16 205/50 R17
Nissan Tiida I Sedan (2011 - 2019) 1.6i PCD (PCD) 5x114,3 Hub diameter (Dia,mm) 66.1 Mounting bolt 12x1,25	5,5x15 ET40	6,5x16 ET40		195/65 R15	195/60 R16
Nissan Tiida I Sedan (2011 - 2019) 1.8i PCD (PCD) 4x114,3 Hub diameter (Dia,mm) 66.1 Mounting bolt 12x1,25	5,5x15 ET40 6x16 ET40	5,5x15 ET40 7,5x17 ET40		185/65 R15 195/55 R16	195/65 R15 205/45 R17 205/50 R17 215/45 R17
Nissan Tiida I Sedan (2007 - 2010) 1.6i C11 109 лс PCD (PCD) 4x114,3 Hub diameter (Dia,mm) 66.1 Mounting bolt 12x1,25	5,5x15 ET40	5,5x15 ET40 5,5x16 ET40 7,5x17 ET40		195/65 R15	185/65 R15 195/55 R16 205/45 R17 205/50 R17 215/45 R17
Nissan Tiida I Sedan (2007 - 2010) 1.8i C11 125 лс PCD (PCD) 4x114,3 Hub diameter (Dia,mm) 66.1 Mounting bolt 12x1,25	5,5x15 ET40	5,5x15 ET40 5,5x16 ET40 7,5x17 ET40		195/65 R15	185/65 R15 195/55 R16 205/45 R17 205/50 R17 215/45 R17

Wheels parameters:

For an example of size: 6,5x16 ET43 PCD 5*114,3 Dia 66.1 , consider the notation for these parameters. - width - 6,5 or 6,5J means the width of the disk shelves in inches
- diameter - 16 or R16 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*114,3 means 5 holes with a distance of 114,3.
- Et (ET) -43 or ET43 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -66.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,25 diameter and thread pitch of the bolt / nut in millimeters

Tyres sizes:

Using the wheel size example 195/60 R16 , consider what these options mean. - Width -195 - tire width in millimeters
- Height -60 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be195 *60 & # 37; = mm
- Diameter -16 or R16 - tire setting diameter
