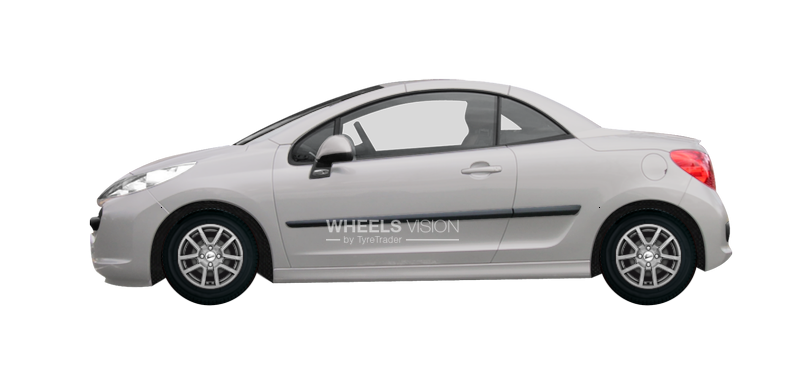

Factory wheels and tyres sizes Peugeot 207 Cabriolet (2007 - 2025)

Auto name Common wheels parameters	Factory (Wheels)	Options (Wheels)	Tuning (Wheels)	Factory (tires)	Options (tires)	Tuning (tires)
Peugeot 207 Cabriolet (2009 - 2014) 1.4 HDi JM 70 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	5,5x14 ET34 6x15 ET27	6x16 ET30 6,5x17 ET30		185/65 R14 195/55 R15	195/50 R16 195/45 R17
Peugeot 207 Cabriolet (2010 - 2014) 1.4 HDi PF1 Facelift 67 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x15 ET23 6x16 ET27	6x15 ET25 6,5x16 ET25		185/65 R15 195/55 R16	195/60 R15 205/55 R16
Peugeot 207 Cabriolet (2010 - 2014) 1.4 VTi PF1 Facelift 95 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x15 ET23 6x16 ET27	6x15 ET25 6,5x16 ET25		185/65 R15 195/55 R16	195/60 R15 205/55 R16
Peugeot 207 Cabriolet (2008 - 2014) 1.4i JM 74 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	5,5x14 ET34 6x15 ET27	6,5x16 ET28 7x17 ET25		185/55 R14 195/55 R15	205/45 R16 205/40 R17
Peugeot 207 Cabriolet (2010 - 2014) 1.6 HDi PF1 Facelift PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x15 ET23 6x16 ET27	6,5x16 ET25 7x17 ET22		185/65 R15 195/55 R16	205/55 R16 205/50 R17
Peugeot 207 Cabriolet (2010 - 2014) 1.6 THP GTi PF1 Facelift 184 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x17 ET26	7,5x17 ET20 8x18 ET15		205/45 R17	215/45 R17 235/35 R18
Peugeot 207 Cabriolet (2010 - 2014) 1.6 THP PF1 Facelift 148 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x17 ET26	7x17 ET25 7,5x18 ET20		205/45 R17	215/45 R17 215/40 R18
Peugeot 207 Cabriolet (2010 - 2014) 1.6 VTi PF1 Facelift 119 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x16 ET27 7x17 ET26	6,5x16 ET25 7x18 ET22		195/55 R16 205/45 R17	205/40 R18 205/55 R16
Peugeot 207 Cabriolet (2006 - 2009) 1.4 HDi PF1 67 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x15 ET23 6x16 ET27	6x15 ET25		185/65 R15 195/55 R16	195/60 R15
Peugeot 207 Cabriolet (2007 - 2009) 1.4 VTi PF1 95 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x15 ET23 6x16 ET27	6x15 ET25		185/65 R15 195/55 R16	195/60 R15
Peugeot 207 Cabriolet (2007 - 2009) 1.6 HDi PF1 PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x15 ET23 6x16 ET27	6,5x16 ET25 7x17 ET20		185/65 R15 195/55 R16	205/55 R16 205/45 R17
Peugeot 207 Cabriolet (2007 - 2009) 1.6 THP GT PF1 150 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x17 ET26	7x17 ET22 7,5x18 ET20		205/45 R17	215/45 R17 215/40 R18
Peugeot 207 Cabriolet (2007 - 2009) 1.6 THP GTi PF1 174 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x17 ET26	7,5x17 ET20 8x18 ET15		205/45 R17	215/45 R17 235/35 R18
Peugeot 207 Cabriolet (2007 - 2009) 1.6 VTi PF1 119 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x16 ET27 7x17 ET26	6,5x16 ET25 7x18 ET25		195/55 R16 205/45 R17	205/55 R16 205/40 R18

Wheels parameters:

For an example of size: 5,5x14 ET34 PCD 4*108 Dia 65.1 , consider the notation for these parameters. - width - 5,5 or 5,5J means the width of the disk shelves in inches
- diameter - 14 or R14 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 4*108 means 4 holes with a distance of 108.
- Et (ET) -34 or ET34 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -65.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,25 diameter and thread pitch of the bolt / nut in millimeters

Tyres sizes:

Using the wheel size example 185/65 R14 , consider what these options mean. - Width -185 - tire width in millimeters
- Height -65 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be185 *65 & # 37; = mm
- Diameter -14 or R14 - tire setting diameter
