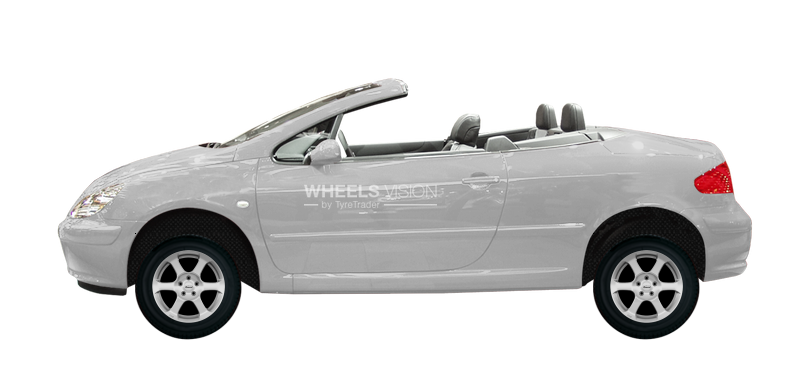

Factory wheels and tyres sizes Peugeot 307 Cabriolet (2003 - 2011)

Auto name Common wheels parameters	Factory (Wheels)	Options (Wheels)	Tuning (Wheels)	Factory (tires)	Options (tires)	Tuning (tires)
Peugeot 307 Cabriolet (2001 - 2011) 1.4i 16V PF2 89 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x15 ET27 6,5x16 ET31	6,5x17 ET30 7x18 ET25		195/65 R15 205/55 R16	205/50 R17 205/45 R18
Peugeot 307 Cabriolet (2001 - 2011) 1.4i PF2 74 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x15 ET27 6,5x16 ET31	6x16 ET30 6,5x17 ET30		195/65 R15 205/55 R16	205/50 R17 195/60 R16
Peugeot 307 Cabriolet (2006 - 2011) 1.6 HDi PF2 PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x15 ET27 6,5x15 ET31	6,5x16 ET30 7x17 ET25		195/65 R15 205/55 R15	215/55 R16 215/50 R17
Peugeot 307 Cabriolet (2001 - 2011) 1.6i PF2 109 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x15 ET26 6,5x16 ET31	6,5x17 ET30 7x18 ET25		195/65 R15 205/55 R16	205/50 R17 205/45 R18
Peugeot 307 Cabriolet (2006 - 2011) 2.0 HDi PF2 134 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6,5x16 ET31 6,5x17 ET31	6,5x17 ET30 7x18 ET25		205/55 R16 205/50 R17	215/50 R17 215/45 R18
Peugeot 307 Cabriolet (2001 - 2011) 2.0i PF2 138 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6,5x16 ET31 6,5x17 ET31	7x16 ET27 7,5x17 ET23		205/55 R16 205/50 R17	225/50 R16 225/45 R17
Peugeot 307 Cabriolet (2001 - 2011) 2.0i VVT PF2 174 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6,5x17 ET31	7x17 ET27 7,5x17 ET23 8x18 ET18		205/50 R17	225/45 R17 235/40 R18 215/50 R17
Peugeot 307 Cabriolet (2001 - 2005) 1.4 HDi PF2 70 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x15 ET27	6x16 ET30 6x17 ET30 6,5x17 ET30		195/65 R15	195/55 R17 195/60 R16 205/50 R17
Peugeot 307 Cabriolet (2001 - 2005) 2.0 HDi PF2 89 лс PCD (PCD) 4x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	6x15 ET27 6,5x16 ET31	6,5x15 ET30 7x17 ET25		195/65 R15 205/55 R16	205/65 R15 205/50 R17

Wheels parameters:

For an example of size: 6x15 ET27 PCD 4*108 Dia 65.1 , consider the notation for these parameters. - width - 6 or 6J means the width of the disk shelves in inches
- diameter - 15 or R15 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 4*108 means 4 holes with a distance of 108.
- Et (ET) -27 or ET27 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -65.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,25 diameter and thread pitch of the bolt / nut in millimeters

Tyres sizes:

Using the wheel size example 195/65 R15 , consider what these options mean. - Width -195 - tire width in millimeters
- Height -65 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be195 *65 & # 37; = mm
- Diameter -15 or R15 - tire setting diameter
