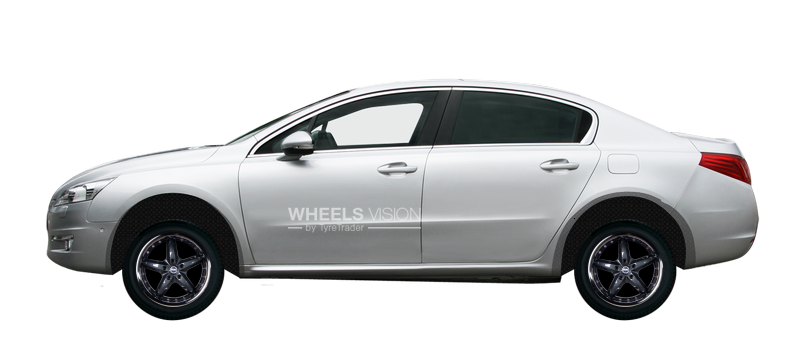

Factory wheels and tyres sizes Peugeot 508 I Sedan (2011 - 2025)

Auto name Common wheels parameters	Factory (Wheels)	Options (Wheels)	Tuning (Wheels)	Factory (tires)	Options (tires)	Tuning (tires)
Peugeot 508 I Sedan (2018 - 2021) 1.6 Hybrid II 221 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x17 ET40	7,5x17 ET40 7,5x17 ET44 8x18 ET44 8x19 ET44		215/55 R17	235/45 R18 235/40 R19 235/50 R17
Peugeot 508 I Sedan (2018 - 2021) 1.6 PureTech II PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	8x18 ET44	8x19 ET44		235/45 R18	235/40 R19
Peugeot 508 I Sedan (2019 - 2021) 1.6 PureTech II 215 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	8x18 ET44	8x19 ET44		235/45 R18	235/40 R19
Peugeot 508 I Sedan (2018 - 2021) 2.0 BlueHDi II PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x17 ET40	7,5x17 ET40 7,5x17 ET44 8x18 ET44 8x19 ET44		215/55 R17	235/45 R18 235/40 R19 235/50 R17
Peugeot 508 I Sedan (2014 - 2018) 1.6 HDi I Facelift 118 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x16 ET47 7x17 ET46	7x18 ET45 7,5x18 ET49		215/60 R16 215/55 R17	215/50 R18 235/45 R18
Peugeot 508 I Sedan (2014 - 2018) 1.6 THP I Facelift 162 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x16 ET47 7x17 ET46	7,5x18 ET49 8x19 ET49		215/60 R16 215/55 R17	235/45 R18 235/45 R19
Peugeot 508 I Sedan (2014 - 2018) 2.0 HDi I Facelift 148 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x17 ET46 7,5x18 ET49	8,5x18 ET45 9x19 ET40		215/55 R17 235/45 R18	245/45 R18 265/35 R19
Peugeot 508 I Sedan (2010 - 2013) 1.6 HDi I 110 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x16 ET47 7x17 ET46	7,5x18 ET49		215/60 R16 215/55 R17	235/45 R18
Peugeot 508 I Sedan (2010 - 2013) 1.6 THP I 154 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x17 ET46 8x18 ET49	8x19 ET45		215/55 R17 235/45 R18	235/40 R19
Peugeot 508 I Sedan (2010 - 2013) 2.0 HDi I 161 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x17 ET46 8x18 ET49	8x19 ET45		215/55 R17 235/45 R18	235/40 R19
Peugeot 508 I Sedan (2010 - 2013) 2.2 HDi GT I 201 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7,5x17 ET40 8x18 ET42	8x19 ET42		225/55 R17 235/45 R18	235/40 R19
Peugeot 508 I Sedan (2015 - 2018) 2.0 HDi Hybrid4 PF3 Facelift 197 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7,5x17 ET40 8x18 ET42	8,5x19 ET39		225/55 R17 245/45 R18	245/40 R19
Peugeot 508 I Sedan (2015 - 2018) 2.0 HDi PF3 Facelift 178 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7,5x17 ET40 8x18 ET42	8,5x19 ET39		225/55 R17 245/45 R18	245/40 R19
Peugeot 508 I Sedan (2012 - 2014) 2.0 HDi Hybrid4 PF3 197 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7,5x17 ET40 8x18 ET42	8,5x19 ET39		225/55 R17 245/45 R18	245/40 R19
Peugeot 508 I Sedan (2020 - 2021) 1.6 PHEV II 245 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x17 ET40	7,5x17 ET40 7,5x17 ET44 8x18 ET44 8x19 ET44		215/55 R17	235/45 R18 235/40 R19 235/50 R17
Peugeot 508 I Sedan (2019 - 2021) 1.6 PureTech II 174 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x17 ET40	7,5x17 ET40 7,5x17 ET44 8x18 ET44 8x19 ET44		215/55 R17	235/40 R19 235/50 R17 235/45 R18
Peugeot 508 I Sedan (2019 - 2021) 1.6 PureTech II 208 лс PCD (PCD) 5x108 Hub diameter (Dia,mm) 65.1 Mounting bolt 12x1,25	7x17 ET40	7,5x17 ET40 7,5x17 ET44 8x18 ET44 8x19 ET44		215/55 R17	235/45 R18 235/40 R19 235/50 R17

Wheels parameters:

For an example of size: 7x17 ET40 PCD 5*108 Dia 65.1 , consider the notation for these parameters. - width - 7 or 7J means the width of the disk shelves in inches
- diameter - 17 or R17 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*108 means 5 holes with a distance of 108.
- Et (ET) -40 or ET40 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -65.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,25 diameter and thread pitch of the bolt / nut in millimeters

Tyres sizes:

Using the wheel size example 215/55 R17 , consider what these options mean. - Width -215 - tire width in millimeters
- Height -55 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be215 *55 & # 37; = mm
- Diameter -17 or R17 - tire setting diameter
