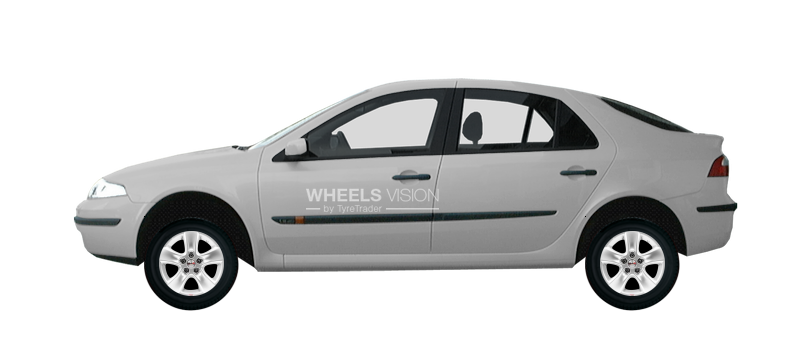

Renault Laguna II Liftback (2005 - 2010) 1.6i
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 66.1
Mounting bolt 14x1,5
|
6,5x16 ET47 7x16 ET47 |
7x16 ET47 7x17 ET47 |
195/60 R16 205/60 R16 |
215/60 R16 215/55 R17 215/50 R17 215/55 R16 |
||
|
Renault Laguna II Liftback (2000 - 2007) 1.9 dCi
PCD (PCD) 5x108
Hub diameter (Dia,mm) 60.1
Mounting bolt 12x1,5
|
6,5x15 ET50 |
6,5x16 ET50 6,5x17 ET50 7x17 ET50 |
195/65 R15 |
205/50 R17 225/45 R17 205/60 R16 205/55 R16 |
||
|
Renault Laguna II Liftback (2001 - 2010) 2.0i
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 66.1
Mounting bolt 14x1,5
|
6,5x16 ET47 7x16 ET47 |
7x16 ET47 7x17 ET47 |
195/60 R16 205/60 R16 |
225/50 R17 215/60 R16 215/55 R17 215/55 R16 |
For an example of size: 6,5x16 ET47 PCD 5*114,3 Dia 66.1 , consider the notation for these parameters.
- width - 6,5 or 6,5J means the width of the disk shelves in inches
- diameter - 16 or R16 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*114,3 means 5 holes with a distance of 114,3.
- Et (ET) -47 or ET47 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -66.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -14*1,5 diameter and thread pitch of the bolt / nut in millimeters
Using the wheel size example 195/60 R16 , consider what these options mean.
- Width -195 - tire width in millimeters
- Height -60 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be195 *60 & # 37; = mm
- Diameter -16 or R16 - tire setting diameter
