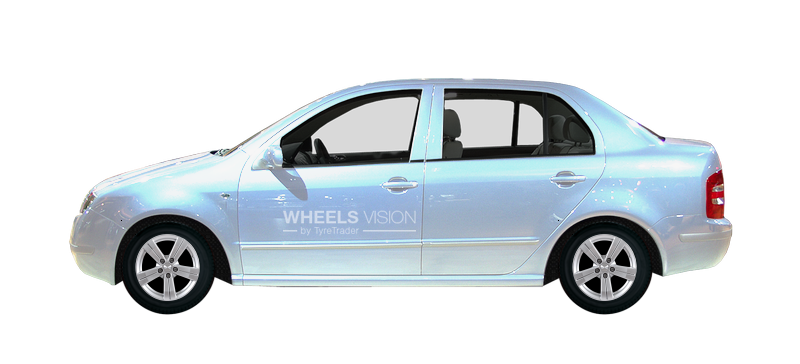

Factory wheels and tyres sizes Skoda Fabia I Sedan (1999 - 2007)

Auto name Common wheels parameters	Factory (Wheels)	Options (Wheels)	Tuning (Wheels)	Factory (tires)	Options (tires)	Tuning (tires)
Skoda Fabia I Sedan (2007 - 2014) 1.2 MPI Mk2 5J 59 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	5x14 ET35 6x14 ET37	6x15 ET43 6,5x16 ET43		165/70 R14 185/60 R14	185/55 R15 195/50 R15 205/45 R16 195/55 R15
Skoda Fabia I Sedan (2007 - 2014) 1.2 MPi Mk2 5J 68 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	5x14 ET35 6x14 ET37	6x15 ET43 6,5x16 ET43		165/70 R14 185/60 R14	185/55 R15 195/50 R15 205/45 R16 195/55 R15
Skoda Fabia I Sedan (2003 - 2007) 1.2i 12V Mk1 6Y 63 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	5x14 ET35 6x14 ET37 6x15 ET43	5,5x14 ET38 6x15 ET43		165/70 R14 185/60 R14 195/50 R15	175/65 R14 185/55 R15 195/50 R15
Skoda Fabia I Sedan (2007 - 2014) 1.4 MPi Mk2 5J 84 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	5x14 ET35 6x14 ET37	6x15 ET43 6,5x16 ET43		165/70 R14 185/60 R14	185/55 R15 195/50 R15 205/45 R16 195/55 R15
Skoda Fabia I Sedan (2005 - 2007) 1.4 TDi Mk1 6Y 79 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	5x14 ET35 6x14 ET37 6x14 ET38	5,5x14 ET38 6x15 ET43 6,5x16 ET43		165/70 R14 185/60 R14	175/65 R14 195/50 R15 195/45 R16
Skoda Fabia I Sedan (2007 - 2010) 1.4 TDi Mk2 5J 68 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	5x14 ET35 6x14 ET37	6x15 ET43 6,5x16 ET43		165/70 R14 185/60 R14	195/55 R15 205/45 R16 185/55 R15 195/50 R15
Skoda Fabia I Sedan (2007 - 2010) 1.4 TDI Mk2 5J 79 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	5x14 ET35 6x14 ET37	6x15 ET43 6,5x16 ET43		165/70 R14 185/60 R14	195/55 R15 205/45 R16 185/55 R15 195/50 R15
Skoda Fabia I Sedan (1999 - 2007) 1.4i 16V Mk1 6Y 74 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	5x14 ET35 6x14 ET37	6x15 ET43 6,5x16 ET43		165/70 R14 185/60 R14	185/55 R15 195/50 R15 195/45 R16
Skoda Fabia I Sedan (2007 - 2014) 1.6 MPi Mk2 5J 103 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	6x14 ET37 6x15 ET43	6,5x16 ET43 7x17 ET45		185/60 R14 195/55 R15	205/45 R16 205/40 R17
Skoda Fabia I Sedan (1999 - 2007) 1.9 TDi Mk1 6Y 99 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	6x14 ET37 6x15 ET43	6,5x16 ET43 6,5x16 ET45 7x17 ET45		165/70 R14 185/60 R14 195/50 R15	205/40 R17 205/45 R16 195/45 R16
Skoda Fabia I Sedan (2007 - 2011) 1.9 TDi Mk2 5J 103 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	6x14 ET37 6x15 ET43	6,5x16 ET43 7x17 ET48		185/60 R14 195/55 R15	205/40 R17 205/45 R16
Skoda Fabia I Sedan (2003 - 2007) 1.9 TDi vRS Mk1 6Y 129 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	6x15 ET43 6,5x16 ET43	6,5x16 ET45 7x17 ET45		195/50 R15 195/45 R16	205/45 R16 205/40 R17
Skoda Fabia I Sedan (2002 - 2004) 1.4 TDi Mk1 6Y 74 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	5x14 ET35 6x14 ET37	5,5x14 ET35 6x15 ET43		165/70 R14 185/60 R14	185/55 R15 195/50 R15 175/65 R14
Skoda Fabia I Sedan (2001 - 2003) 1.2i Mk1 6Y 54 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	5x13 ET35 5x14 ET35 6x14 ET37	5,5x14 ET38 6x15 ET43		155/80 R13 165/70 R14 185/60 R14	175/65 R14 185/55 R15 195/50 R15
Skoda Fabia I Sedan (1999 - 2003) 1.4i Mk1 6Y 67 лс PCD (PCD) 5x100 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	5x14 ET35 6x14 ET37	5,5x14 ET35 6x15 ET43		165/70 R14 185/60 R14	175/65 R14 185/55 R15 195/50 R15

Wheels parameters:

For an example of size: 5x14 ET35 PCD 5*100 Dia 57.1 , consider the notation for these parameters. - width - 5 or 5J means the width of the disk shelves in inches
- diameter - 14 or R14 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*100 means 5 holes with a distance of 100.
- Et (ET) -35 or ET35 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -57.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -14*1,5 diameter and thread pitch of the bolt / nut in millimeters

Tyres sizes:

Using the wheel size example 165/70 R14 , consider what these options mean. - Width -165 - tire width in millimeters
- Height -70 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be165 *70 & # 37; = mm
- Diameter -14 or R14 - tire setting diameter
