Auto name Common wheels parameters |
Factory (Wheels) |
Options (Wheels) |
Tuning (Wheels) |
Factory (tires) |
Options (tires) |
Tuning (tires) |
|

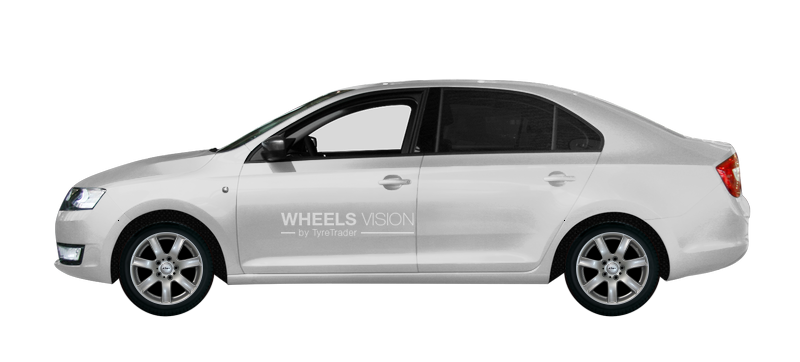

Skoda Rapid Liftback (2018 - 2020) 1.0 TSI NH Facelift 109 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
7x16 ET46 7x17 ET46 |
215/45 R16 215/40 R17 |
||||
|
Skoda Rapid Liftback (2017 - 2019) 1.0 TSi NH Facelift
PCD (PCD) 5x100
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
6x15 ET38 7x16 ET46 |
6x15 ET38 7x17 ET46 |
185/60 R15 215/45 R16 |
195/55 R15 215/40 R17 |
||
|
Skoda Rapid Liftback (2012 - 2017) 1.2 TSi
PCD (PCD) 5x100
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
6x15 ET38 7x16 ET46 |
6x15 ET38 7x17 ET46 |
185/60 R15 215/45 R16 |
195/55 R15 215/40 R17 |
||
|
Skoda Rapid Liftback (2012 - 2015) 1.2 MPi NH 74 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
5x14 ET35 6x15 ET38 |
6x15 ET38 7x16 ET46 7x17 ET46 |
175/70 R14 185/60 R15 |
215/40 R17 195/55 R15 215/45 R16 |
For an example of size: 7x16 ET46 PCD 5*100 Dia 57.1 , consider the notation for these parameters.
- width - 7 or 7J means the width of the disk shelves in inches
- diameter - 16 or R16 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*100 means 5 holes with a distance of 100.
- Et (ET) -46 or ET46 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -57.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -14*1,5 diameter and thread pitch of the bolt / nut in millimeters
Using the wheel size example 215/45 R16 , consider what these options mean.
- Width -215 - tire width in millimeters
- Height -45 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be215 *45 & # 37; = mm
- Diameter -16 or R16 - tire setting diameter
