Auto name Common wheels parameters |
Factory (Wheels) |
Options (Wheels) |
Tuning (Wheels) |
Factory (tires) |
Options (tires) |
Tuning (tires) |
|

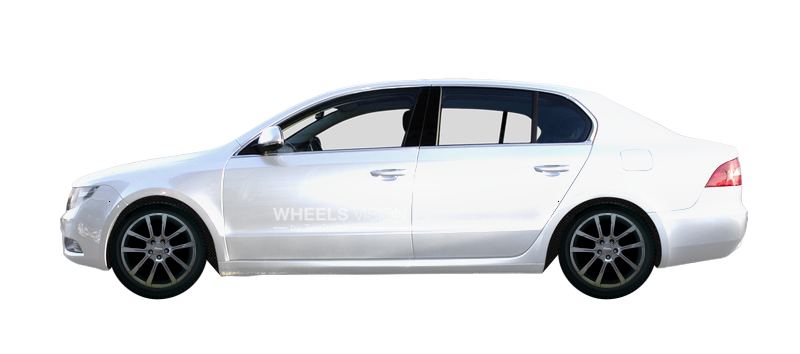

Skoda Superb II Liftback (2020) 1.4 TSI 3V Restyling 215 лс
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
8x18 ET44 8x19 ET44 |
8,5x20 ET40 |
235/45 R18 235/40 R19 |
245/35 R20 |
||
|
Skoda Superb II Liftback (2020) 2.0 TDI 3V Restyling
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
6,5x16 ET41 7x17 ET40 8x18 ET44 8x19 ET44 |
8,5x20 ET40 |
215/60 R16 215/55 R17 235/45 R18 235/40 R19 |
245/35 R20 |
||
|
Skoda Superb II Liftback (2020) 2.0 TSi 3V Restyling 188 лс
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
8x18 ET44 8x19 ET44 |
8,5x20 ET40 |
235/45 R18 235/40 R19 |
245/35 R20 |
||
|
Skoda Superb II Liftback (2020) 2.0 TSi 3V Restyling 268 лс
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
7x17 ET40 8x18 ET44 |
8x19 ET44 9x20 ET35 |
215/55 R17 235/45 R18 |
235/40 R19 255/30 R20 |
||
|
Skoda Superb II Liftback (2015 - 2019) 1.4 TSi 3V
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
6,5x16 ET41 7x17 ET40 |
7x18 ET40 8x18 ET44 |
215/60 R16 215/55 R17 |
215/50 R18 235/45 R18 |
||
|
Skoda Superb II Liftback (2015 - 2019) 1.8 TSi 3V 177 лс
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
6,5x16 ET41 7x17 ET40 |
7,5x17 ET45 8x18 ET44 |
215/60 R16 215/55 R17 |
235/50 R17 235/45 R18 |
||
|
Skoda Superb II Liftback (2015 - 2019) 2.0 TDi 3V 188 лс
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
7x17 ET40 8x18 ET44 |
8x19 ET44 8x20 ET40 |
215/55 R17 235/45 R18 |
235/35 R20 235/40 R19 |
||
|
Skoda Superb II Liftback (2015 - 2019) 2.0 TSi 3V 217 лс
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
7x17 ET40 8x18 ET44 |
8x19 ET44 8,5x20 ET40 |
215/55 R17 235/45 R18 |
235/40 R19 245/35 R20 |
||
|
Skoda Superb II Liftback (2008 - 2014) 1.4 TSI 3T 123 лс
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
6x16 ET50 7x16 ET45 |
6x17 ET45 7,5x17 ET49 |
205/55 R16 |
205/50 R17 225/45 R17 |
||
|
Skoda Superb II Liftback (2008 - 2014) 1.8 TSi 3T 158 лс
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
7x16 ET45 7,5x17 ET49 |
7x16 ET45 7,5x18 ET46 |
205/55 R16 225/45 R17 |
225/40 R18 225/50 R16 |
||
|
Skoda Superb II Liftback (2008 - 2014) 2.0 TDi 3T 138 лс
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
6x16 ET50 7x16 ET45 |
7,5x17 ET49 7,5x18 ET46 |
205/55 R16 |
225/40 R18 225/45 R17 |
||
|
Skoda Superb II Liftback (2008 - 2014) 2.0 TSi 3T 197 лс
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
7,5x17 ET49 7,5x18 ET46 |
8x18 ET45 8,5x19 ET42 |
225/45 R17 225/40 R18 |
245/30 R19 235/40 R18 |
||
|
Skoda Superb II Liftback (2008 - 2014) 3.6 FSi 3T 256 лс
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
7,5x18 ET46 |
8x18 ET45 8,5x18 ET42 9x19 ET38 |
225/40 R18 |
255/35 R18 255/30 R19 235/40 R18 |
For an example of size: 8x18 ET44 PCD 5*112 Dia 57.1 , consider the notation for these parameters.
- width - 8 or 8J means the width of the disk shelves in inches
- diameter - 18 or R18 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*112 means 5 holes with a distance of 112.
- Et (ET) -44 or ET44 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -57.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -14*1,5 diameter and thread pitch of the bolt / nut in millimeters
Using the wheel size example 235/45 R18 , consider what these options mean.
- Width -235 - tire width in millimeters
- Height -45 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be235 *45 & # 37; = mm
- Diameter -18 or R18 - tire setting diameter
