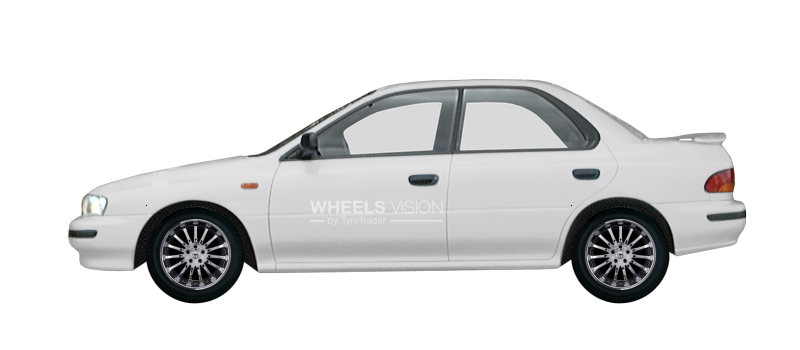

Subaru Impreza I Sedan () 2.0 T GC\GF 215 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
7x16 ET55 |
7,5x17 ET51 8x18 ET48 |
215/50 R16 |
215/45 R17 225/35 R18 |
||
Subaru Impreza I Sedan () 2.0 T GC\GF 208 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
7x16 ET55 |
7x17 ET55 |
205/50 R16 |
215/45 R17 |
For an example of size: 7x16 ET55 PCD 5*100 Dia 56.1 , consider the notation for these parameters.
- width - 7 or 7J means the width of the disk shelves in inches
- diameter - 16 or R16 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*100 means 5 holes with a distance of 100.
- Et (ET) -55 or ET55 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -56.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,25 diameter and thread pitch of the bolt / nut in millimeters
Using the wheel size example 215/50 R16 , consider what these options mean.
- Width -215 - tire width in millimeters
- Height -50 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be215 *50 & # 37; = mm
- Diameter -16 or R16 - tire setting diameter
