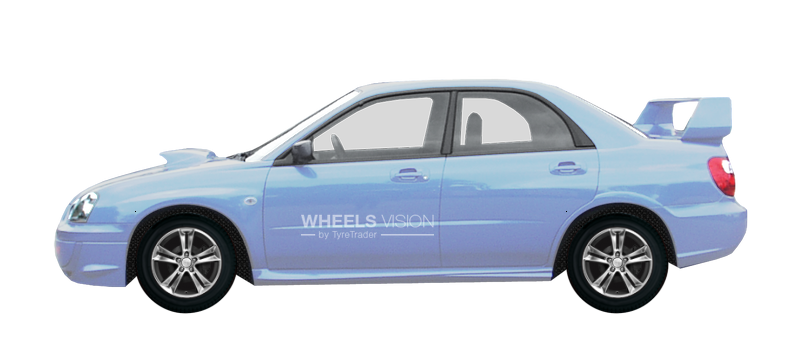

Subaru Impreza II Sedan (2007 - 2012) 1.5i G3 106 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
6x15 ET48 6,5x16 ET55 |
7x17 ET55 7,5x18 ET48 |
195/65 R15 205/55 R16 |
205/50 R17 215/45 R17 225/40 R18 |
||
|
Subaru Impreza II Sedan (2006 - 2007) 2.5i G2 173 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
6,5x16 ET55 |
6,5x17 ET55 7x17 ET55 |
205/55 R16 |
205/50 R17 215/45 R17 |
||
|
Subaru Impreza II Sedan (2001 - 2005) 2.5i G2 165 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
6,5x16 ET55 |
6,5x17 ET55 7x17 ET55 |
205/55 R16 |
205/50 R17 215/45 R17 |
||
|
Subaru Impreza II Sedan (1995 - 2000) 2.5i G1 165 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
6,5x16 ET55 |
7x17 ET48 7x17 ET51 |
205/50 R16 |
205/45 R17 215/45 R17 |
||
|
Subaru Impreza II Sedan () 2.5 T GD\GG 224 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
6,5x17 ET55 |
6,5x17 ET55 7,5x17 ET53 |
215/45 R17 |
215/45 R17 225/45 R17 |
||
|
Subaru Impreza II Sedan () 2.5 T GD\GG 300 лс
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
8x17 ET53 |
8x17 ET48 8x18 ET53 8,5x18 ET48 |
225/45 R17 |
245/40 R17 245/35 R18 235/40 R18 |
||
|
Subaru Impreza II Sedan () 2.5 T GD\GG 280 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
7,5x17 ET53 |
8x17 ET48 8x18 ET48 |
225/45 R17 |
245/35 R18 245/40 R17 |
For an example of size: 6x15 ET48 PCD 5*100 Dia 56.1 , consider the notation for these parameters.
- width - 6 or 6J means the width of the disk shelves in inches
- diameter - 15 or R15 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*100 means 5 holes with a distance of 100.
- Et (ET) -48 or ET48 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -56.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,25 diameter and thread pitch of the bolt / nut in millimeters
Using the wheel size example 195/65 R15 , consider what these options mean.
- Width -195 - tire width in millimeters
- Height -65 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be195 *65 & # 37; = mm
- Diameter -15 or R15 - tire setting diameter
