Auto name Common wheels parameters |
Factory (Wheels) |
Options (Wheels) |
Tuning (Wheels) |
Factory (tires) |
Options (tires) |
Tuning (tires) |

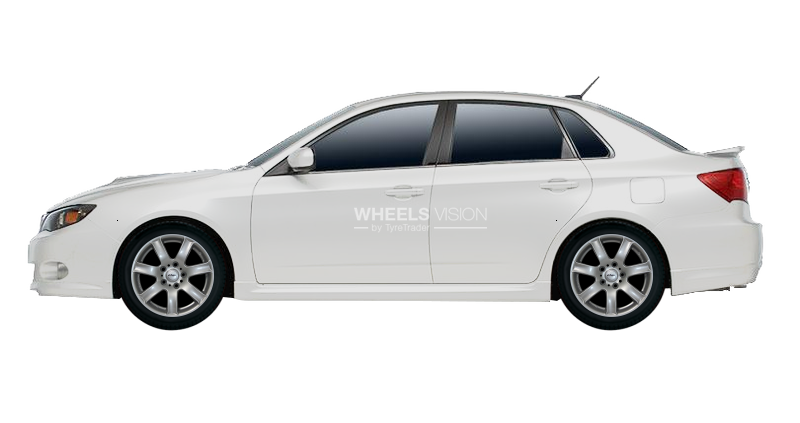

Subaru Impreza III Sedan (2007 - 2012) 1.5i G3 106 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
6x15 ET48 6,5x16 ET55 |
7x17 ET55 7,5x18 ET48 |
195/65 R15 205/55 R16 |
205/50 R17 215/45 R17 225/40 R18 |
||
Subaru Impreza III Sedan (2008 - 2012) 2.0 TD G3 146 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
6,5x16 ET55 |
6,5x17 ET55 7x17 ET55 7,5x18 ET48 |
205/55 R16 |
215/45 R17 225/40 R18 205/50 R17 |
||
Subaru Impreza III Sedan (2007 - 2012) 2.0i G3 148 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
6,5x16 ET55 |
6x15 ET48 7x17 ET55 7,5x18 ET48 |
205/55 R16 |
205/50 R17 215/45 R17 225/40 R18 195/65 R15 |
||
Subaru Impreza III Sedan (2008 - 2012) 2.5i G3 168 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
6,5x16 ET55 |
7x17 ET55 7,5x17 ET50 8x18 ET48 |
205/55 R16 |
205/50 R17 225/45 R17 225/40 R18 |
||
Subaru Impreza III Sedan () 2.0 T GV\GR 282 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
8x17 ET51 |
8,5x18 ET48 9x19 ET45 |
235/45 R17 |
245/40 R18 255/30 R19 |
||
Subaru Impreza III Sedan () 2.5 T GV\GR 261 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
8x17 ET53 |
8,5x18 ET48 8,5x19 ET48 |
235/45 R17 |
245/40 R18 245/35 R19 |
||
Subaru Impreza III Sedan (2008 - 2014) 2.5 T GR 305 лс
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
|
8,5x18 ET55 |
8,5x19 ET52 9x20 ET48 |
245/40 R18 |
245/35 R19 255/30 R20 |
For an example of size: 6x15 ET48 PCD 5*100 Dia 56.1 , consider the notation for these parameters.
- width - 6 or 6J means the width of the disk shelves in inches
- diameter - 15 or R15 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*100 means 5 holes with a distance of 100.
- Et (ET) -48 or ET48 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -56.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,25 diameter and thread pitch of the bolt / nut in millimeters
Using the wheel size example 195/65 R15 , consider what these options mean.
- Width -195 - tire width in millimeters
- Height -65 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be195 *65 & # 37; = mm
- Diameter -15 or R15 - tire setting diameter
