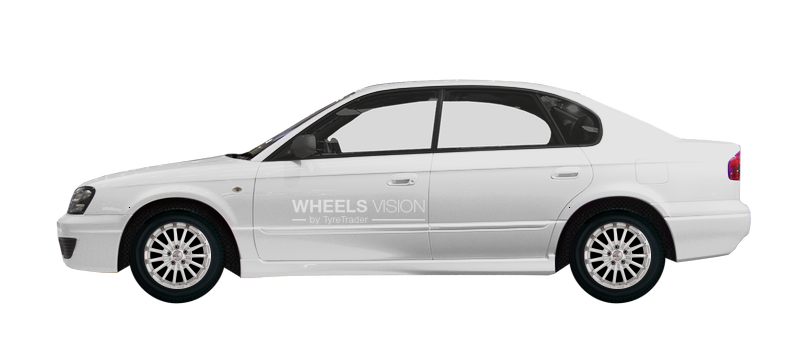

Factory wheels and tyres sizes Subaru Legacy III Sedan (1998 - 2003)

Factory wheels and tyres sizes Subaru Legacy III Sedan (1998 - 2003)
Auto name
Common wheels parameters
Factory
(Wheels)
Options
(Wheels)
Tuning
(Wheels)
Factory
(tires)
Options
(tires)
Tuning
(tires)
Subaru Legacy III Sedan () 3.0i R BE\BH 217 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
7x16 ET55
7x17 ET55
7,5x17 ET50
8x18 ET48
205/55 R16
215/45 R17
235/35 R18
235/40 R17
Subaru Legacy III Sedan () 2.5i GT BD\BG 165 лс
PCD (PCD) 5x100
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
6x15 ET55
6,5x16 ET55
7x17 ET51
195/60 R15
205/50 R16
205/45 R17

Wheels parameters:

For an example of size: 7x16 ET55 PCD 5*100 Dia 56.1 , consider the notation for these parameters. - width - 7 or 7J means the width of the disk shelves in inches
- diameter - 16 or R16 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*100 means 5 holes with a distance of 100.
- Et (ET) -55 or ET55 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -56.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,25 diameter and thread pitch of the bolt / nut in millimeters

Tyres sizes:

Using the wheel size example 205/55 R16 , consider what these options mean. - Width -205 - tire width in millimeters
- Height -55 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be205 *55 & # 37; = mm
- Diameter -16 or R16 - tire setting diameter
