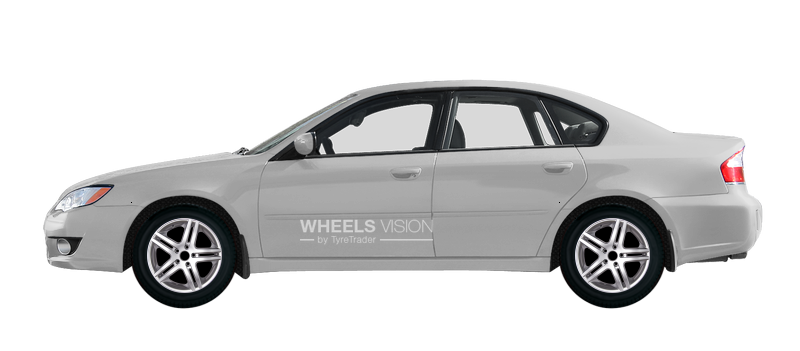

Factory wheels and tyres sizes Subaru Legacy V Sedan (2009 - 2025)

Factory wheels and tyres sizes Subaru Legacy V Sedan (2009 - 2025)
Auto name
Common wheels parameters
Factory
(Wheels)
Options
(Wheels)
Tuning
(Wheels)
Factory
(tires)
Options
(tires)
Tuning
(tires)
Subaru Legacy V Sedan (2004 - 2017) 2.5i
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 56.1
Mounting bolt 12x1,25
7x17 ET55
7,5x17 ET55
7,5x18 ET55
7,5x17 ET55
8x18 ET48
225/55 R17
225/50 R18
245/50 R17
245/45 R18

Wheels parameters:

For an example of size: 7x17 ET55 PCD 5*114,3 Dia 56.1 , consider the notation for these parameters. - width - 7 or 7J means the width of the disk shelves in inches
- diameter - 17 or R17 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*114,3 means 5 holes with a distance of 114,3.
- Et (ET) -55 or ET55 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -56.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,25 diameter and thread pitch of the bolt / nut in millimeters

Tyres sizes:

Using the wheel size example 225/55 R17 , consider what these options mean. - Width -225 - tire width in millimeters
- Height -55 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be225 *55 & # 37; = mm
- Diameter -17 or R17 - tire setting diameter
