Auto name Common wheels parameters |
Factory (Wheels) |
Options (Wheels) |
Tuning (Wheels) |
Factory (tires) |
Options (tires) |
Tuning (tires) |
|

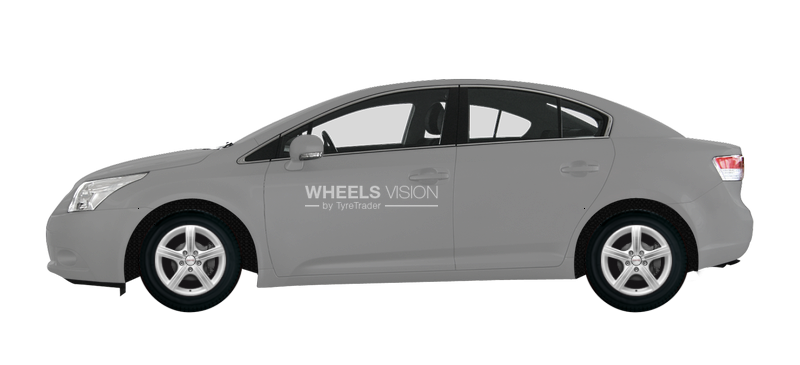

Toyota Avensis III Sedan (2015 - 2018) 1.8 VVT-i T270 Facelift 145 лс
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 60.1
Mounting bolt 12x1,5
|
6,5x16 ET39 |
7x17 ET45 7,5x18 ET45 |
205/60 R16 |
215/55 R17 225/45 R18 |
||
|
Toyota Avensis III Sedan (1999 - 2018) 2.0 D-4D
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 60.1
Mounting bolt 12x1,5
|
7x17 ET45 |
6,5x16 ET39 7,5x18 ET45 |
215/55 R17 |
205/60 R16 225/45 R18 |
||
|
Toyota Avensis III Sedan (2015 - 2018) 2.0 VVT-i T270 Facelift 150 лс
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 60.1
Mounting bolt 12x1,5
|
6,5x16 ET39 |
7x17 ET45 7,5x18 ET45 |
205/60 R16 |
215/55 R17 225/45 R18 |
||
|
Toyota Avensis III Sedan (2008 - 2015) 1.8i 145 лс
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 60.1
Mounting bolt 12x1,5
|
6,5x16 ET39 |
7x17 ET45 7,5x18 ET45 |
205/60 R16 |
215/55 R17 225/45 R18 |
||
|
Toyota Avensis III Sedan (2008 - 2011) 2.0i T270 150 лс
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 60.1
Mounting bolt 12x1,5
|
6,5x16 ET39 |
7x17 ET45 7,5x18 ET45 |
205/60 R16 |
215/55 R17 225/45 R18 |
||
|
Toyota Avensis III Sedan (2001 - 2009) 2.0 D-4D 114 лс
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 60.1
Mounting bolt 12x1,5
|
6x15 ET45 |
6,5x15 ET39 6x16 ET39 |
205/65 R15 |
205/60 R16 205/65 R15 |
||
|
Toyota Avensis III Sedan (2001 - 2009) 2.0 VVT-i 148 лс
PCD (PCD) 5x114,3
Hub diameter (Dia,mm) 60.1
Mounting bolt 12x1,5
|
6x15 ET45 |
6,5x15 ET39 6x16 ET39 |
205/65 R15 |
205/60 R16 205/65 R15 |
For an example of size: 6,5x16 ET39 PCD 5*114,3 Dia 60.1 , consider the notation for these parameters.
- width - 6,5 or 6,5J means the width of the disk shelves in inches
- diameter - 16 or R16 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*114,3 means 5 holes with a distance of 114,3.
- Et (ET) -39 or ET39 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -60.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -12*1,5 diameter and thread pitch of the bolt / nut in millimeters
Using the wheel size example 205/60 R16 , consider what these options mean.
- Width -205 - tire width in millimeters
- Height -60 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be205 *60 & # 37; = mm
- Diameter -16 or R16 - tire setting diameter
